Description
- Brand Name: BAIKEOPTO
- Origin: Mainland China
- Model Number: BK-UP900P
- Certification: CE
- Certification: ce
Express Seller's Shipping Method means that we will pay for the freight by sea to your basic sea port, we pay for freight, need customer clear the customs, pay the customs tax and local sea port charges. it is not door to door service.
For quick reply please contact Dora.what’s app:+86 15623952022 email:bklaser001@baikeopto.com

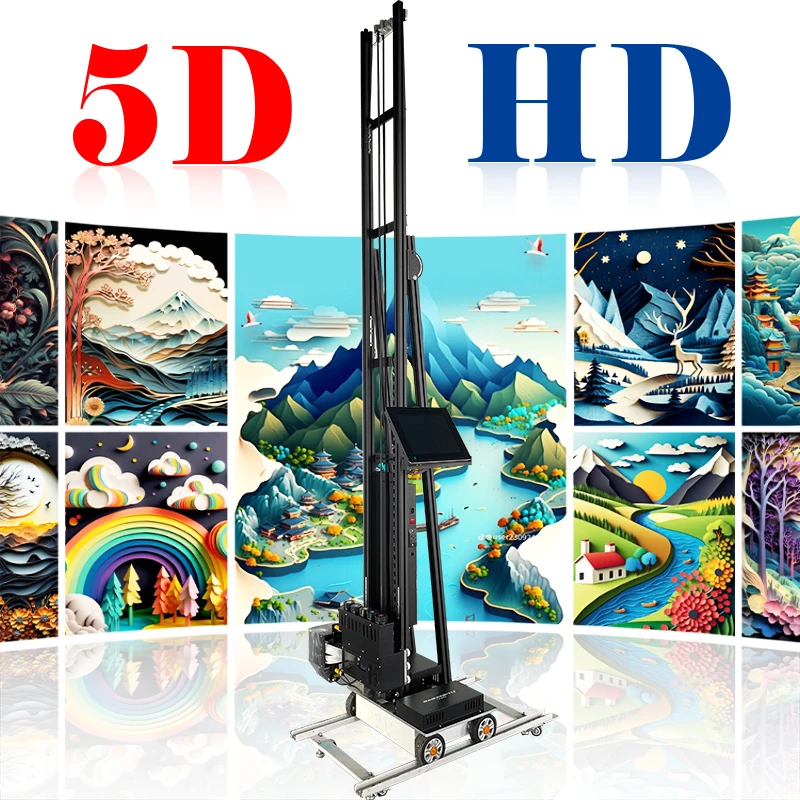

BK-UP900P
1. New technology wall printer
2. Smaller size and linghter weight,only 30kg
3. More complete functions
4. More convenient to operate
5. More convenient to transport,can be disassembled,can be transported by household car
6. Print any colors:4 colors water inks,CMYK,painting is clear and bright,can print 3D
7. High Quality print Head:Epson Japan 4720 ,double print heads
8.Long lifetime of the printhead:30000 square meters
9.High precision:360*720*1440*2880dpi
10.High speed:34㎡/h

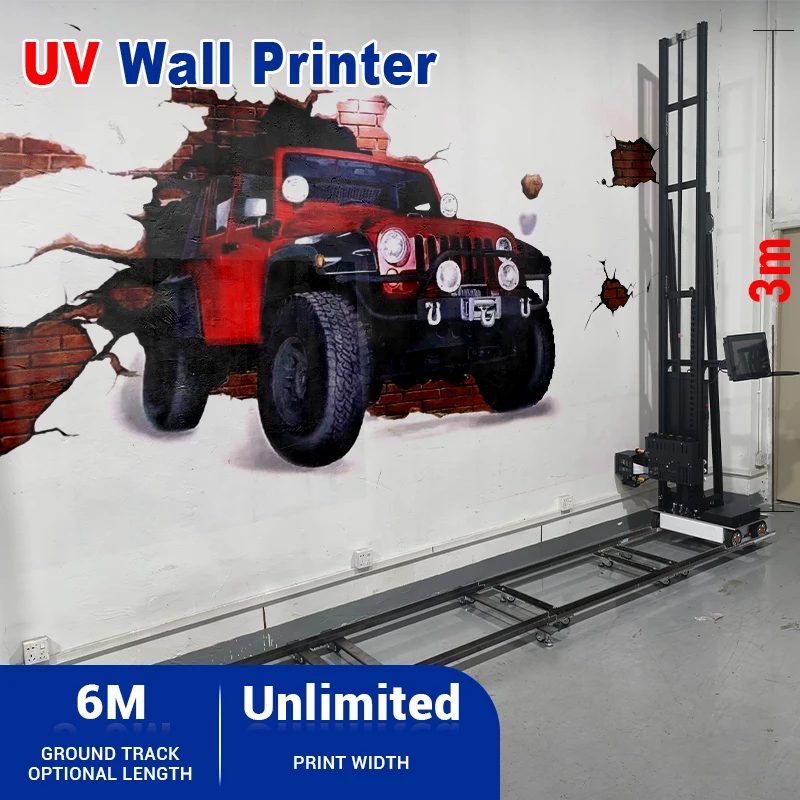

11.Wide print size:3m height,unlimited length
12.Environmentally friendly: odorless, pollution-free
13.Industrial control tablet computer:high-performance
14.13.Print indoor and outdoor,widely suitable print at white/putty/brick wall
|
Parameters of 3D wall painting machine BK-UP900P |
|
|
Machine name |
Portable wall machine |
|
Print size |
2.5m high * 3m long |
|
Nozzle model |
4720 double head |
|
Machine power |
350W |
|
Voltage |
110V-220V(mobile power can be used) |
|
accuracy |
360*720*1440*2880dpi |
|
Ink color |
C-M-Y-K-W |
|
speed |
6-14 m2 / h |
|
Picture format |
PSD、JPG、JPEG、PNG、TIF、AI-PDF |
|
Machine weight |
Main machine 15kg, guide rail 4 * 8kg, base shaft 15kg |
|
Output mode |
Wired transmission, printing controlled by computer |
|
Key components |
3 sections of 1m track, 2 ultrasonic probes, 3 motors and 1 reducer |
|
apply |
Lime wall, emulsion paint wall, putty powder wall, ceramic tile, metal, wallpaper |
|
3D/5D |
Yes (can simulate printing) |
|
Detection function |
Up and down two-way detection of concave convex, with an accuracy of 1mm |
|
Power failure recovery |
There is software to store data in real time |
|
Nozzle inspection |
Yes (software detects nozzle condition) |
|
Color calibration |
Yes (software color correction) |
|
Distance adjustment |
Yes (print size and distance can be adjusted by software) |
|
Power failure endurance |
Yes (self provided UPS mobile power supply is required) |
|
Print positioning |
Yes (the laser cross locator makes the picture print to the specified position) |
|
Horizontal adjustment |
Yes (equipment track has horizontal adjustment function) |
|
Stack disassembly |
One meter after folding, it can be disassembled into three parts for convenient handling |
|
Picture splicing |
Yes (seamless splicing of pictures can be realized)Subject to actual conditions。 |
|
Computer |
Yes |
|
Ink blotter |
Ink blotter needle + ink blotter head |
|
Moisturizing/cleaning solution |
One bottle of moisturizing/cleaning solution each |
|
Wheels |
Detachable rollers *24 |

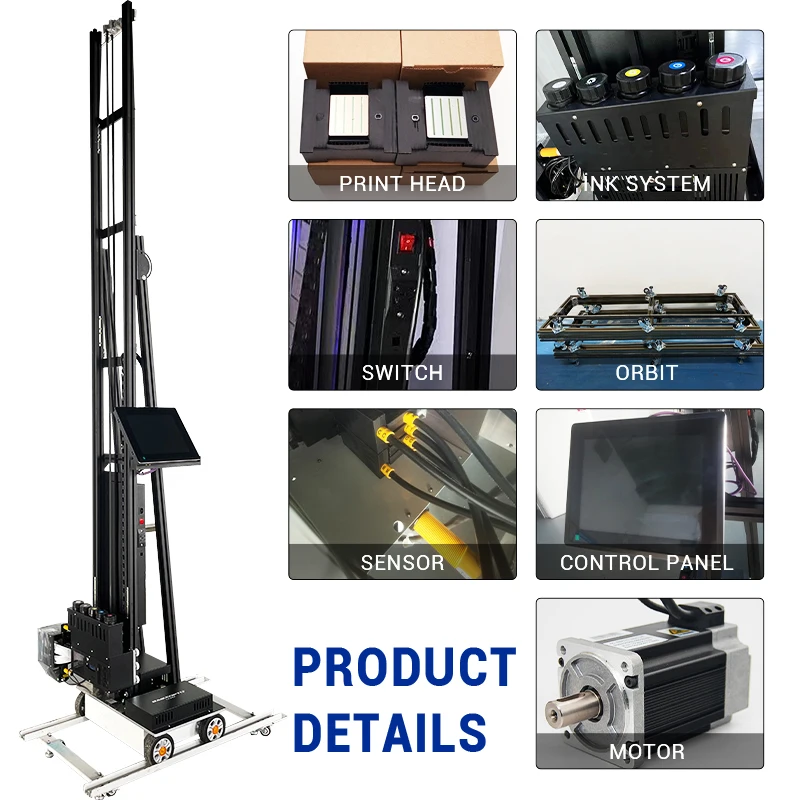

Machine Parts
Print Head
The advanced inkjet technology used in our wall printer allows the print head to accurately spray ink colors, ensuring clarity and color saturation of the patterns.
Control Panel
Located on the interface of the wall printer, the control panel provides user-friendly controls and adjustment options, making the operation more convenient.
Ink Supply System
This system is responsible for storing and supplying ink, ensuring a continuous and stable ink supply to meet the demands of long-duration printing.
Transmission System
The transmission system consists of components such as motors, belts, and rails, which control the movement and positioning of the print head, ensuring precise printing results.
Laser Positioning System
High-precision positioning. The laser positioning system accurately determines the printing position and edges, ensuring alignment and accuracy of the patterns or images. This eliminates potential misalignment or offset, providing high-quality printing results.
Digital stepping motor
Our wall printer uses high-performance drive motors with precise positioning control capabilities, enabling accurate printing position and path control, ensuring accuracy and consistency in print quality.
UV Light
High-quality printing. The UV light is capable of rapidly curing the ink or coating, allowing it to form a durable pattern or image on the wall surface. This ensures the quality and longevity of the print, preventing damage to the wall's surface.
Advanced Distance Sensor
Our wall printer is equipped with advanced distance sensors, providing precise positioning and control during the printing process
one set of water based ink ,4 colors,Red Yellow Blue Black ,each color 500ml/bottle
costs 75usd, which can print 150-200 square meters. so the cost is 0.5usd/sqm.
Three different nozzles are available.
DX10 lifespan is about 20,000 square meters printing
DX7 lifespan is about 30,000 square meters printing.
4720 lifespan is about 40,000 square meters printing
Customers Feedback:
Provide the quick and professional technical support
Example one:
Example two:
Example three:
FAQ
1: Are you a factory or a trading company?

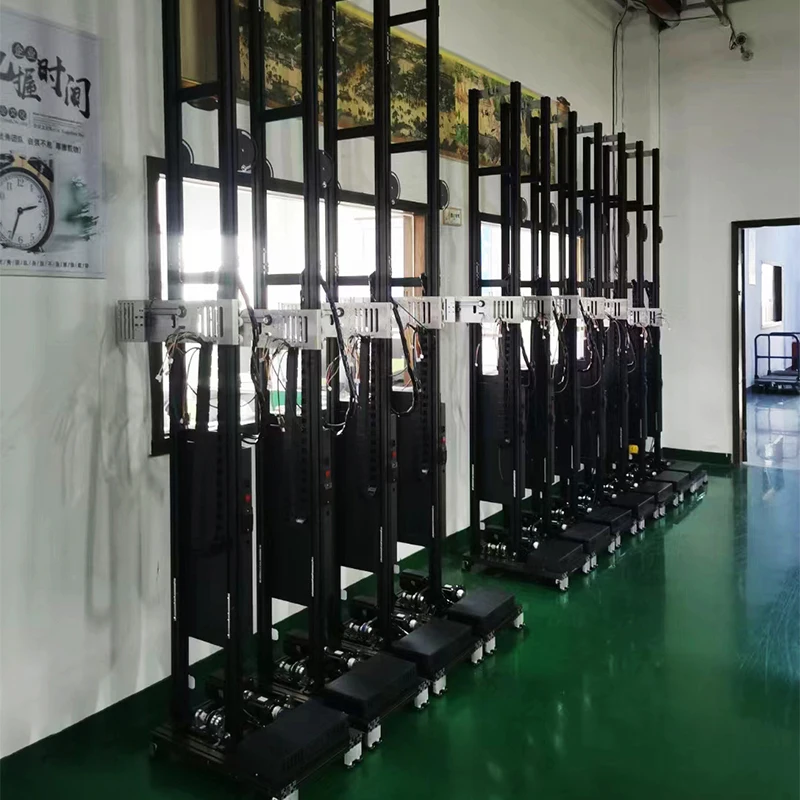

Answer: We are a factory. Our company was established in 2018, and our factory is located in Wuhan, Hubei, China. You are welcome to visit us anytime.
2: How long is the warranty period after purchasing the machine?
Answer: Our machines come with a free one-year warranty, as long as the damage is not caused by human factors.
3: How soon can the delivery be made after payment?
Answer: After payment, we will ship the machine within 7-14 days.
4: How long can the printed patterns remain on the wall?
Answer: The printed patterns can last for up to three years outdoors and over ten years indoors.
5: How much ink is consumed for printing patterns?
Answer: Approximately 500ml (one bottle) of ink can print around 100 square meters, while 500ml of white ink can print approximately 50 square meters.
6: What should I do if I no longer want the printed pattern on the wall?
Answer: You have a couple of options. One option is to directly cover the unwanted pattern with white ink and then replace it with a new design. Alternatively, you can cover the wall with a suitable material based on its original surface. For example, if it's a latex paint wall, you can use latex paint to cover and overwrite the existing pattern.
7: What language settings are available on the machine?
Answer: Typically, the machine supports English and Chinese. If you require other languages, we provide free translation services.
8: How do you handle uneven ground during printing?
Answer: The machine is equipped with adjustable feet that allow you to adjust the track according to the unevenness of the ground. This ensures stable and precise printing even on uneven surfaces.
9: How is the quality of the machine? Are there any components that are prone to damage?
Answer: Our machines have excellent quality, and each machine undergoes comprehensive quality inspection before leaving the factory. The print head is a component that may be more susceptible to issues. We recommend having spare print heads on hand in case of any malfunction.
10: Can one print head be used for printing four colors, while another print head is dedicated to printing white?
Answer: Yes, our machine can be configured to have one print head for printing four colors and another print head dedicated to printing white. This allows for efficient and precise printing of both color and white elements in your designs.
